CFR ECO 500 AW Plus Carpet Cleaning Machine

Catalogue code:10471C

CFR ECO 500 AW Plus Carpet Cleaning Machine

More Views

£3325.00 +VAT
£3990.00 Inc VAT

Back In Stock Soon

Buy Your Equipment From Us On Finance

Lease Purchase From £29.16 Per Week

The Ultimate Cleaning Power For Professional Cleaners

PACKAGE DEAL: Machine, Hose and Wonder Wand. £3520.00+VAT >>>

The all new CFR ECO 500 AW Plus at 500 psi (34.5 bar) and with its built-in 3000 Watt heat exchanger is the most powerful portable cleaning system on the market today.

It is designed to deliver unsurpassed Carpet, Upholstery, Curtains and Hard Surface Cleaning and Restoration. In essence it can clean virtually every surface in a building. The CFR ECO 500 AW Plus will provide 500 pounds of pressure per square inch of deep cleaning power to produce superior cleaning results.

CFR’s fluid control technology enables the operator to thoroughly wash the surface without over wetting. This unique fluid control system simply means drying times are cut to a fraction of conventional machines. This technology along with a built-in 3000 Watt in-line heat exchanger will handle the toughest restoration jobs.

Seven Times More Efficient Than Conventional Extractors

The CFR ECO 500 recycles cleaning fluids through CFR’s patented filtration system. Cleaning solution enters the recycling chamber and the large debris is trapped in the stainless steel filter at the inlet. The solution is then passed through the low micron disposable secondary inlet filter.

The recycled solution enters the tank, passes through a disposable cartridge final filter and finally through an inline strainer for reuse. The efficient system actually allows one litre of water to do the work of seven in a conventional machine.

Recycling Filtration Process

Cleaning Comparisons, Cleaning 5,000 Square Feet

Total Fluid Control Prevents Over Wetting

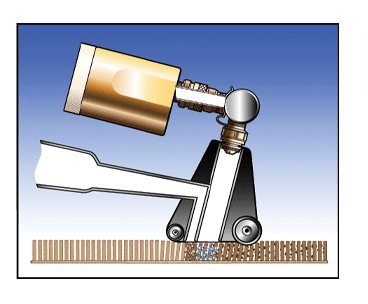

CFR’s patented High Energy Application and Recovery System is based on three unique principles:

  • High-Energy Micro Application atomizes high velocity solution to power-wash each individual fibre.
  • Instantaneous Solution Recovery integrates solution application and retrieval into a single, uninterrupted process. Since the solution is never subject to gravity, it is almost impossible to over wet fabrics.
  • Continuous Flow Recycling virtually eliminates emptying and refilling in the middle of a job because the patented CFR filtration system cleans the recovered solution and recycles it up to seven times without loss of cleaning effectiveness therefore delivering Concentrated Cleaning Energy Without Over wetting.

CFR Designed for Upholstery and Fabric Surfaces

CFR ECO 500 offers a unique cleaning system for Upholstery, Curtains and Fabric Surfaces. The patented tools designed to efficiently clean all fabrics surfaces. Continuous Flow Technology enables the operator to clean Upholstery and fine fabrics at pressures of more than 200psi for deep down cleaning and yet leaves the fabric dry in less than 30 minutes ready for people to sit on.

CFR’s CONTINUOUS FLOW RECYCLING TECHNOLOGY produces deep cleaning power, faster dry times and higher cleaning productivity. CFR ECO 500 recovers more than 92% of the cleaning solution cutting the drying times to a fraction of the conventional machines.


  • Aircraft Carpet Cleaning
  • Schools and Universities
  • Hospitals and Healthcare Facilities
  • Nursing Homes
  • Hotels and Resorts
  • Restaurants
  • Government Facilities
  • Commercial Buildings
  • Casinos

Product Features:

  • 500 PSI adjustable pressure for maximum cleaning power
  • 3000 Watt in-Built Heat system cuts through heavy and greasy soils

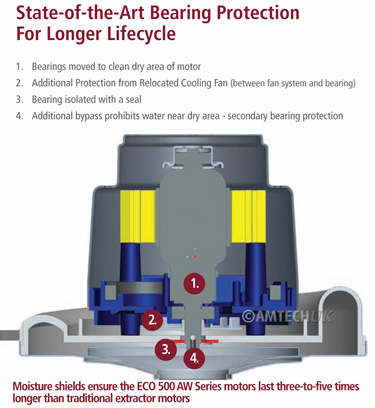

  • New Advance Performance Lamb Ametek vacuum motor delivers 673 peak airwatts
  • Easy-load system enables operator to load and unload without lifting machine

FREE DEMO – Come and visit our Burgess Hill showroom for a free demonstration 8:30am to 5:30pm Monday to Fridays, Saturdays by appointment only. Call one of our trained sales team to book 01444 232211

Warranty: For warranty information please see our ordering terms.


Electric Heater 3000 W, In Built Heat Exchanger
Tank Size 55 Litres
Machine Dimensions (L x W x H) 74 cm x 51 cm x 101 cm,(29" x 20" x 40")
Body Weight 44 kg,(98 lbs)
Peak Airwatts 673
Vacuum Motor Lamb Ametek, Single, 6.6" diameter
Maximum CFM 141
Solution Pump (Adjustable p.s.i.) 500 psi (34.5 BAR)
Pump Motored 1/4 HP DC
Power (V/Amps) 230 V, 10 A
Power Cords Twin 7.5 m (25') detachable
Front Wheel Dimensions Two 10 cm (4")dia. swivel casters
Rear Wheel Dimensions Two 25 cm (10") dia. Wheels
Parts / Labour Warranty 1 year*
Tank Warranty 5 year*
Meets European CE Standards Yes


How To Use The CFR ECO 500 Carpet Cleaning Machine

Cleaning carpets with the CFR ECO 500 & Wonder Wand...


FREE Carpet & Upholstery Cleaning Training

Amtech UK offer a free Carpet & Upholstery Cleaning Course with every machine purchased to help you achieve the best performance from your new investment. We believe the best way to achieve customer satisfaction is through training and education.

Knowing how to clean carpets & upholstery is just as import as the equipment you buy. The type of equipment you use and the knowledge you gain should work seamlessly together to help you provide your customers the best possible advice and cleaning results.

We will teach you how to set up your new equipment correctly, prepare the area for cleaning and complete the cleaning task. We will provide you with a complete understanding of chemical, applications and use. We will teach you how to remove stains and soil with a systematic approach designed to make the process simple and uncomplicated.

For those who already have equipment but lack the confidence to perform professionally and are looking to improve their knowledge and techniques we offer one to one training tailored to answer all your questions.


Part NumberPart Name
Lamb Ametek 6.6" High Suction Vacuum Motor 72855B Lamb Ametek 6.6" High Suction Vacuum Motor
500 p.s.i. Blue Carpet Extractor Pump Head PT403 500 p.s.i. Blue Pump Head
Bluffton electric pump motor X9351 Pump Motor X9351
Coupler, QD, Valved 1/4 F PX6 Coupler, QD, Valved 1/4 F
Kit B, Pumptec Valves 7HR034 Kit B, Pumptec Valves
Kit A, Pumptec Plunger / Seal 7HR021 Kit A, Pumptec Plunger / Seal
Kit C, Nachi 6005NSE .105 Cam Bearing 7HR037 Kit C, .105 Cam Bearing
Kit Pressure Regulator Rebuild CFR ECO 10158A Kit Pressure Regulator Rebuild CFR ECO
Filter Final cartridge CFR Eco 500 72777B Filter Final cartridge CFR Eco 500
Filter Basket Inlet Stainless Steel Eco 500 72774B Filter Basket Inlet Stainless Steel Eco 500
Filter Inlet CFR Eco 500 72776B CFR Eco 500 Inlet Filters Pack of 6
Replacement 6" Lid PX103+ 6" Lid
PX25 Plastic hose barb for carpet cleaning machine hoses PX25 Plastic Fitting Hose Barb
10" Rear Wheel X9063 + 7GL002 10" Rear Wheel + Cap
1/2" Push Nut And Cap 7GL002 1/2" Push Nut And Cap
CFR ECO 500 Drain Hose X9594 CFR ECO 500 Drain Hose
5Ft Flexible Solution filling hose for carpet machines 30.0024.00 Solution Filling Hose
Rocker Switch PX87 Rocker Switch
CFR ECO 500 Hour Meter 72411A CFR ECO 500 Hour Meter
CFR X9818 Power Cord Connector (Male) X9818 X9818 Power Connector (Male)
Power Cord Connector Female X9817 Power Connector (Female)
ML-3 15 AMP Female Plug X9809 ML-3 15 AMP Female Plug
ML-3P 15 AMP Flanged Inlet X9000 ML-3P 15 AMP Flanged Inlet
Stainles steel coupler fpr the CFR ECO 500 72800A Coupler QD SS
Replacement CFR Wonder Wand nozzle seal. 72725A Nozzle Seal / O Ring
Nipple, QD 1/4M-1/4F Valved PX5 Nipple, QD 1/4M-1/4F Valved
1.5" Valve Hanger AA165+ 1.5" Valve Hanger
Wonder Wand Trigger Repair Kit PX810R+ PX810R+ Wonder Wand Trigger Repair Kit
Brass Coupler, QD 1/8 F 70100A Coupler, QD 1/8 F
Nipple, QD 1/8M 70101A Nipple, QD 1/8M
Replacement Trigger Repair Kit 72305RK Trigger Repair Kit
CFR trigger and valve assembly 72305B Trigger Assembly
RFI Filter 20A 71816A RFI Filter 20A
